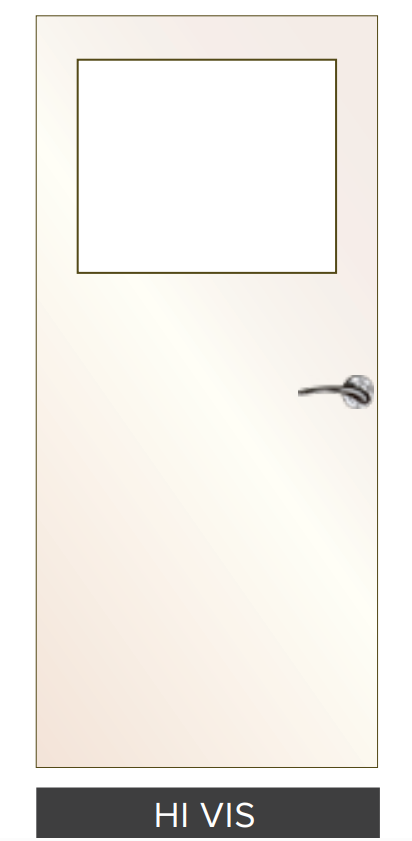

Vision Panel Hi-Vis - Premium 38
*Supplied unfinished and without door furniture.
*Supply unglaze, Glass is an additional cost.
Please select options from top to bottom.
Vision Panel Hi-Vis - Premium 38
MR Solid Core
Interior Door - Superior Doors
Door Product: Supplied unfinished and without door furniture.
Component Specifications
PREMIUM 38 - 1980
- SKIN - 4mm Pre Sealed MDF
- CORE - Moisture Resistant Particle Board
- FRAME - Finger Jointed Pine 30x30mm
- THICKNESS - 38mm

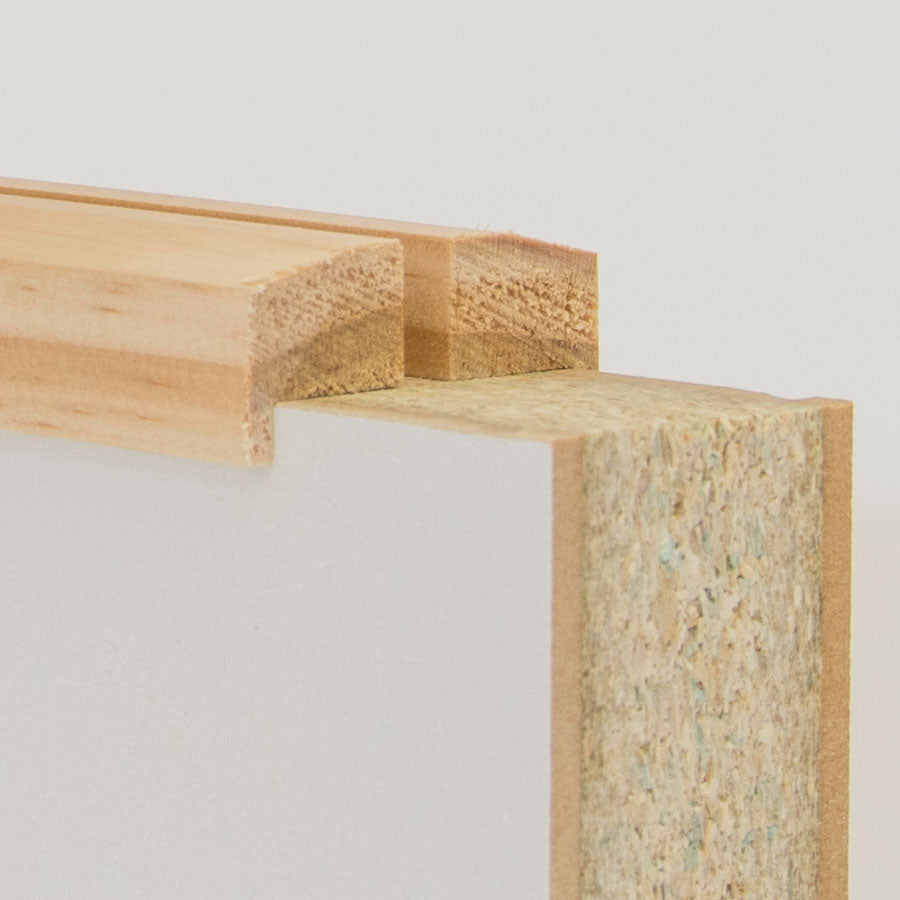

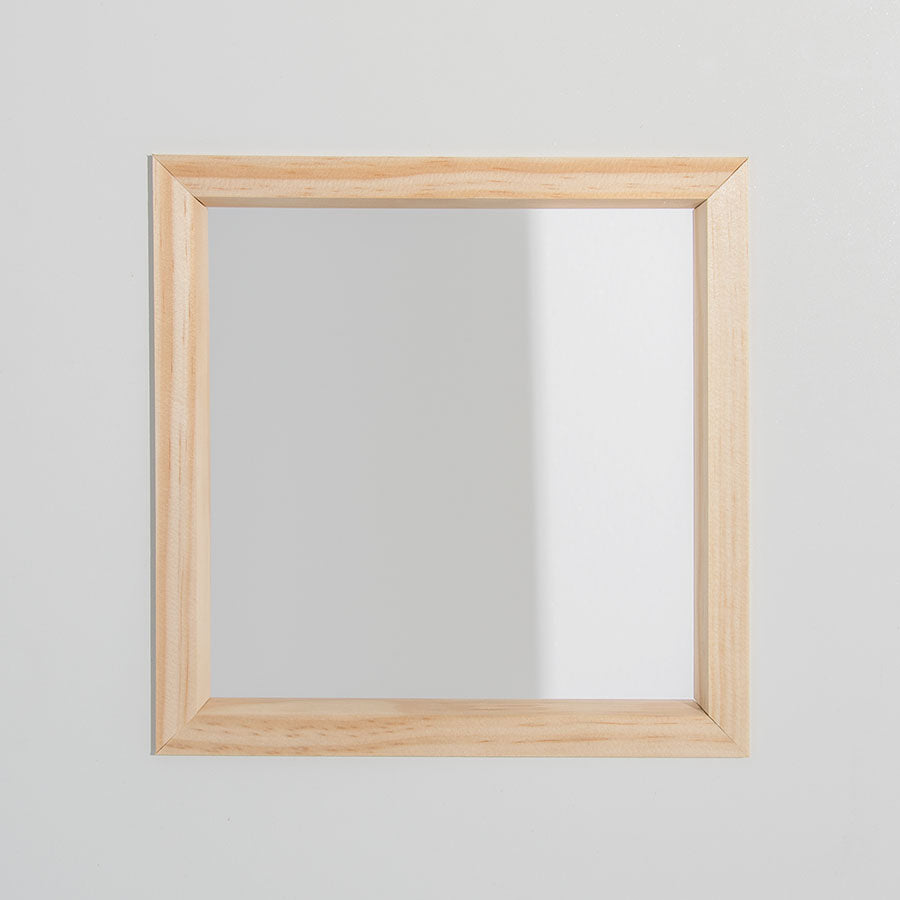

Beading Options: Internal flush Bead or External Bead

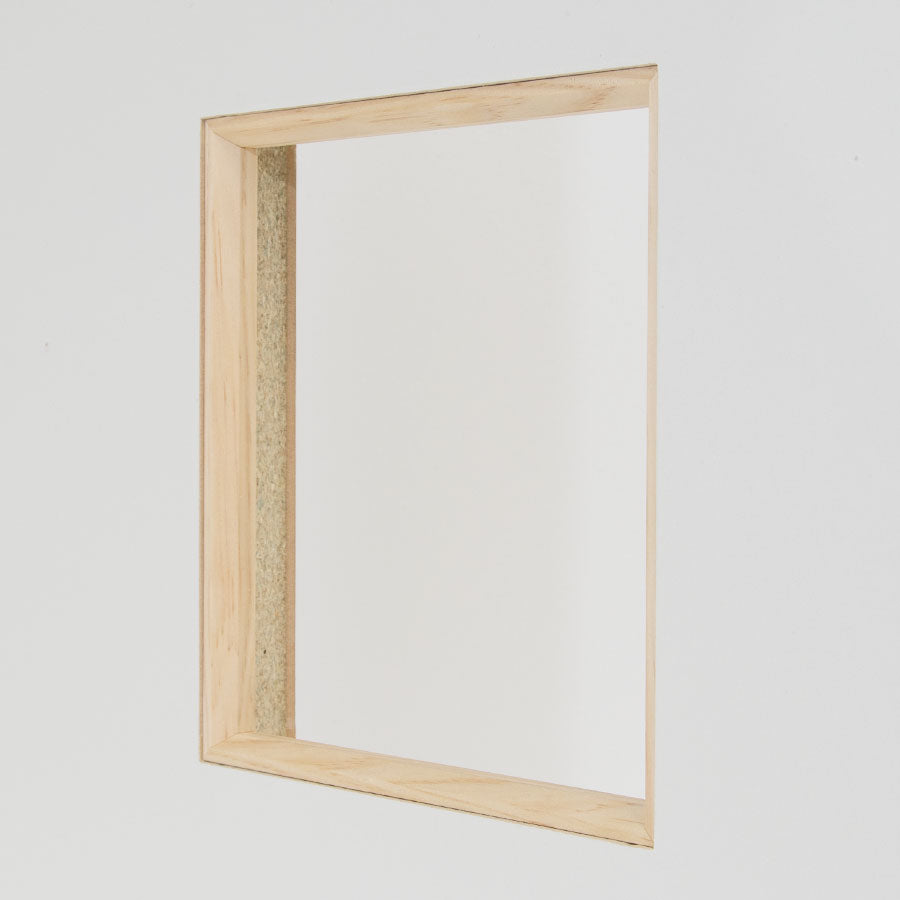

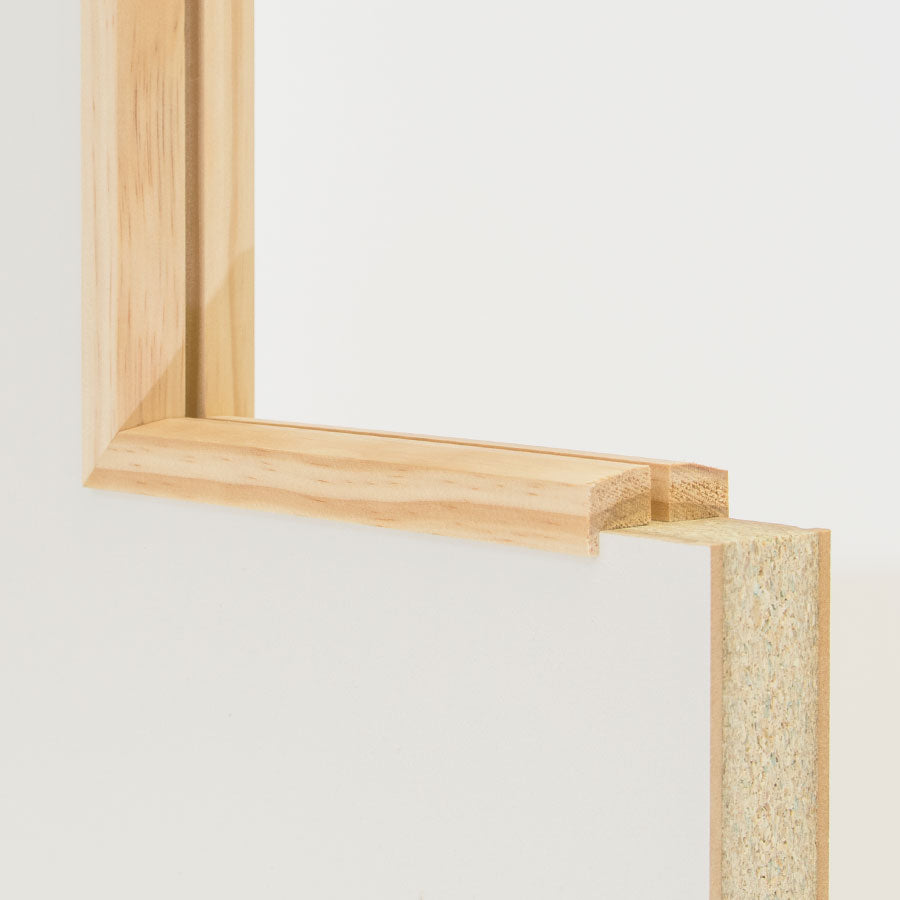

Internal bead

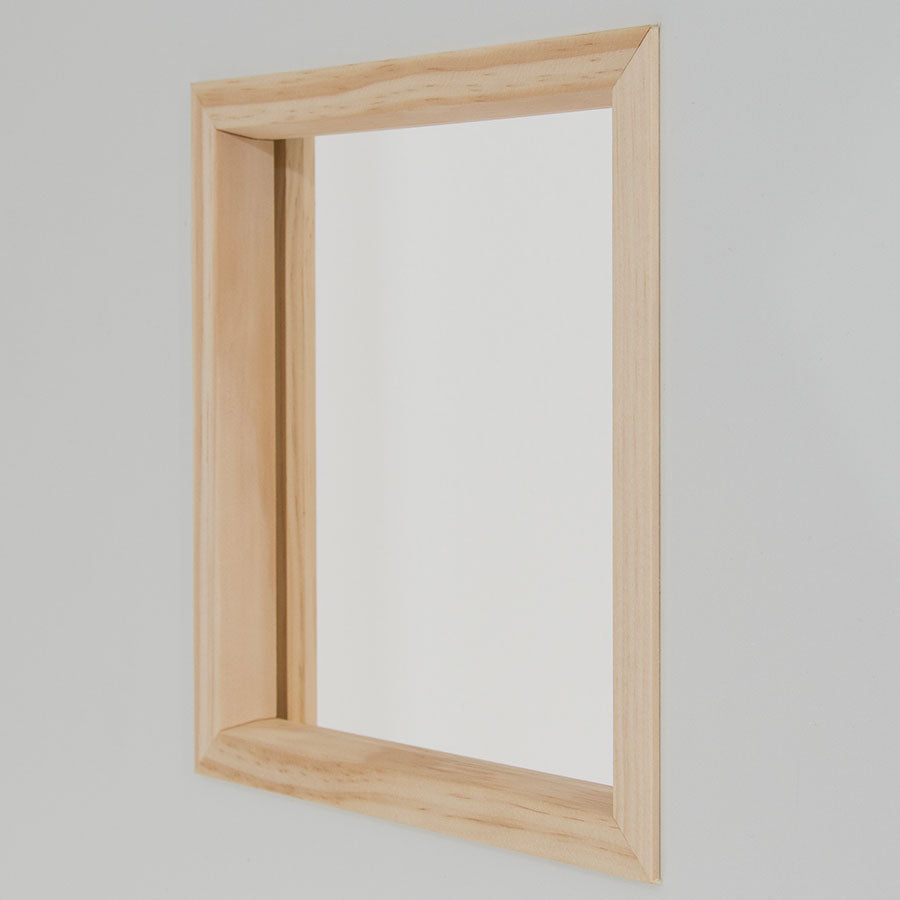

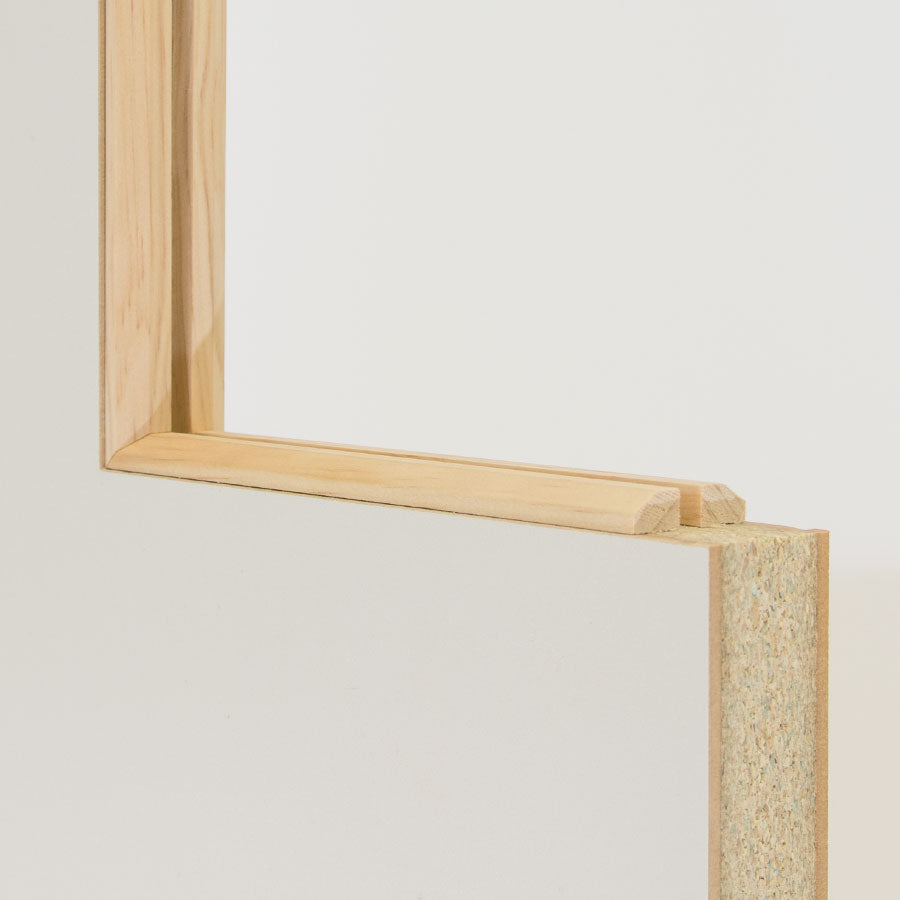

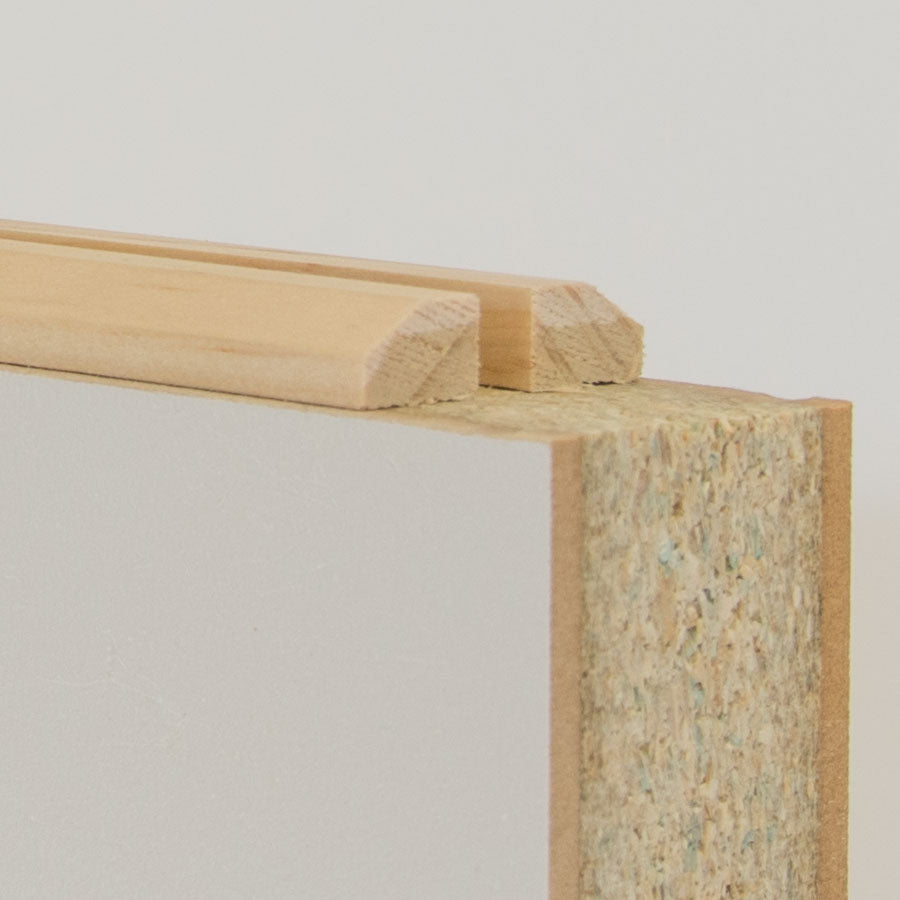

External Bead
Specifications & Sizes
- Standard Heights: 1980 (38mm thick)
- Standard Widths: 610 / 660 / 710 / 760 / 810 / 860 / 910mm

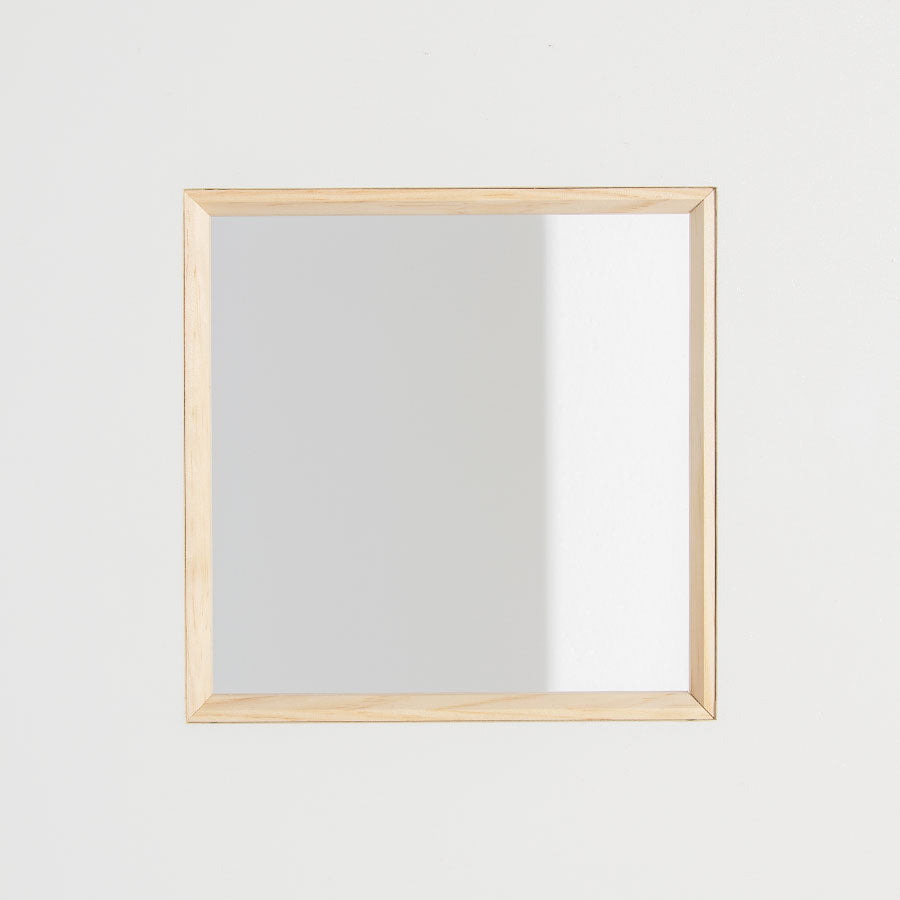

Vision Panel Size Guide
| Door Size | Vision Panel Size | Approx. Border Size |
|---|---|---|
| 1980H x 610W | 770H x 390W | 110mm each side |
| 1980H x 660W | 770H x 440W | 110mm each side |
| 1980H x 710W | 770H x 490W | 110mm each side |
| 1980H x 760W | 770H x 540W | 110mm each side |
| 1980H x 810W | 770H x 590W | 110mm each side |
| 1980H x 860W | 770H x 640W | 110mm each side |
| 1980H x 910W | 770H x 690W | 110mm each side |
Note: Vision panel sizes are based on an approximate 110mm border on each side of the door.
Custom vision panel height: The glass panel height can be customised if required. Please leave the required panel height in the order notes at checkout, or email us after placing your order with your order number and preferred vision panel height.
Glass is an additional cost. We can supply the following glass options for vision panel doors.
5mm glass options
The following glass styles are available in either 5mm standard glass or 5mm toughened glass:
- Clear
- Frosted
- Cathedral
- Stippolite
- Broad reeded
- Narrow reeded
Laminated glass options
- 6.38mm laminated clear glass
- 6.38mm laminated opal glass
Please contact us for glass pricing, or leave your preferred glass option in the order notes at checkout.
Glass thickness note: 6.38mm is the maximum glass thickness suitable for this vision panel door range. Interior vision panel doors are not suitable for double glazing.
