RP8Si Automatic Door Bottom Seals
* Please read the description carefully about the cutback length below and select options from top to bottom.
RP8Si Automatic Door Bottom Seals
Raven Door Sealing Systems
RAVEN PRODUCTS

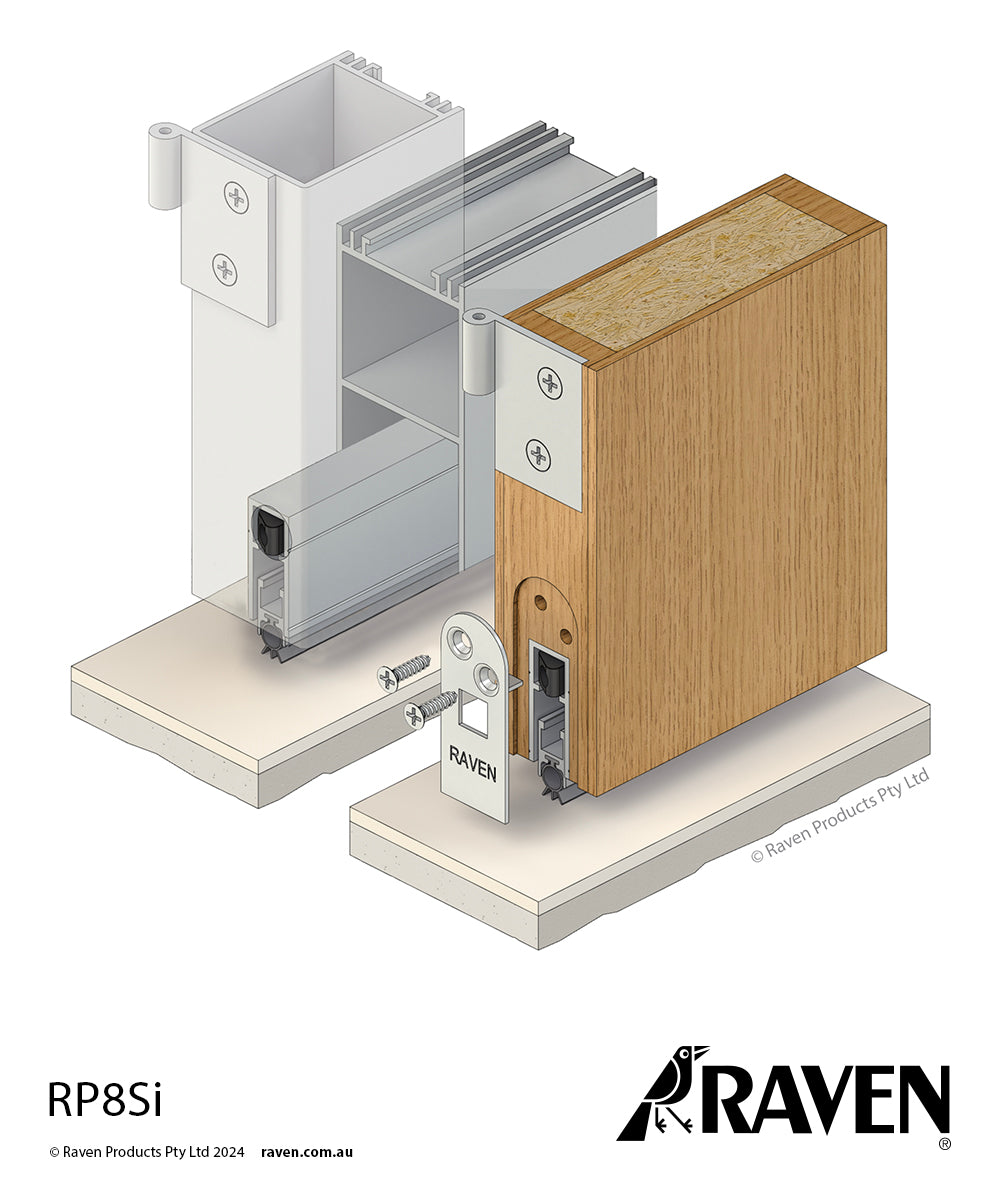

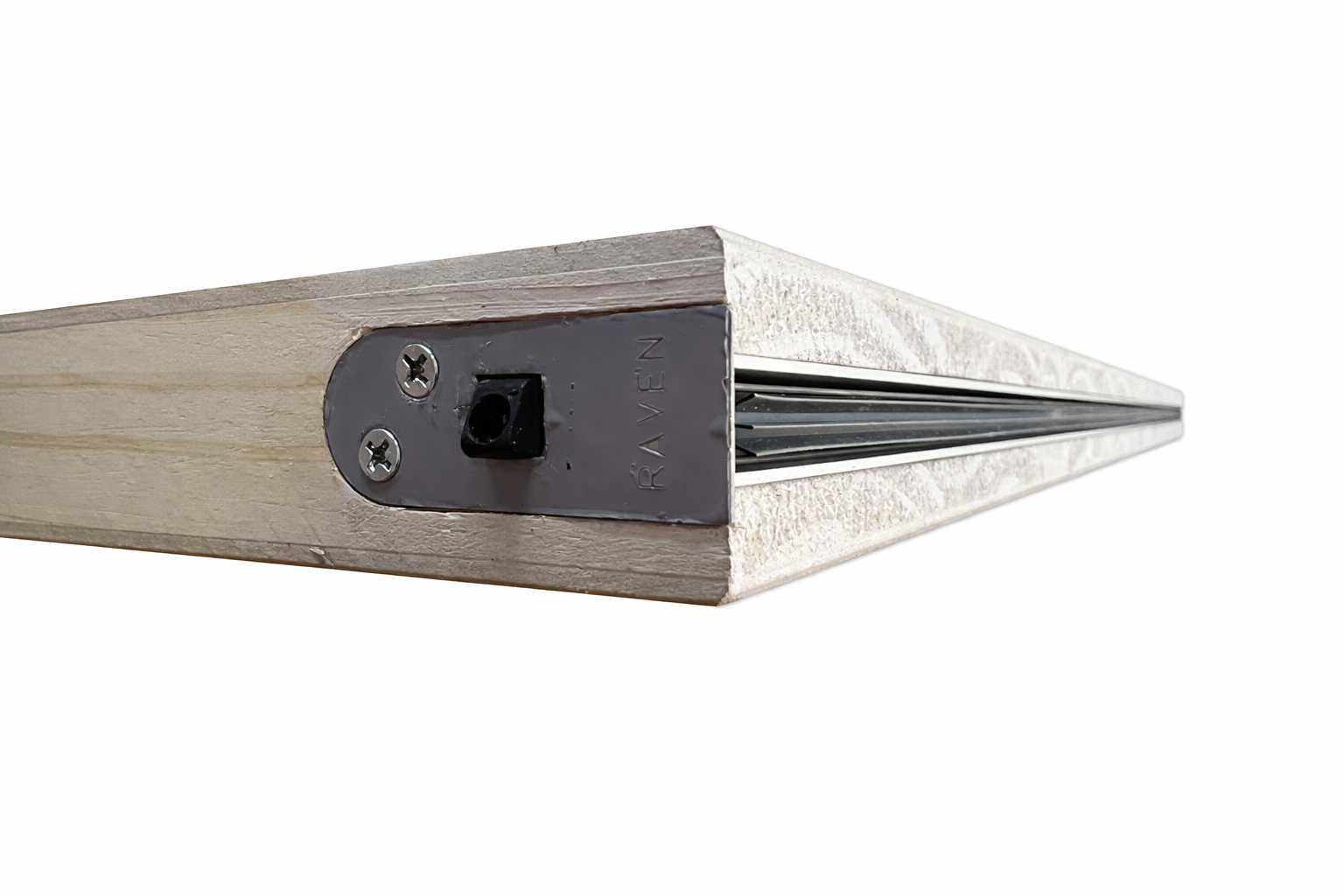

A concealed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicone gaskets for medium temperature smoke and fire door applications. Operated automatically by pressure against the door jamb on its adjustable strike. RP8Si can also be fitted into the bottom rail of a metal door by the fabricator. Has a level adjustment to achieve an optimum seal.
Note: Only the escutcheon plates are coloured on the black and bronze variants.
Product Specifications
Location
Min & Max Gap

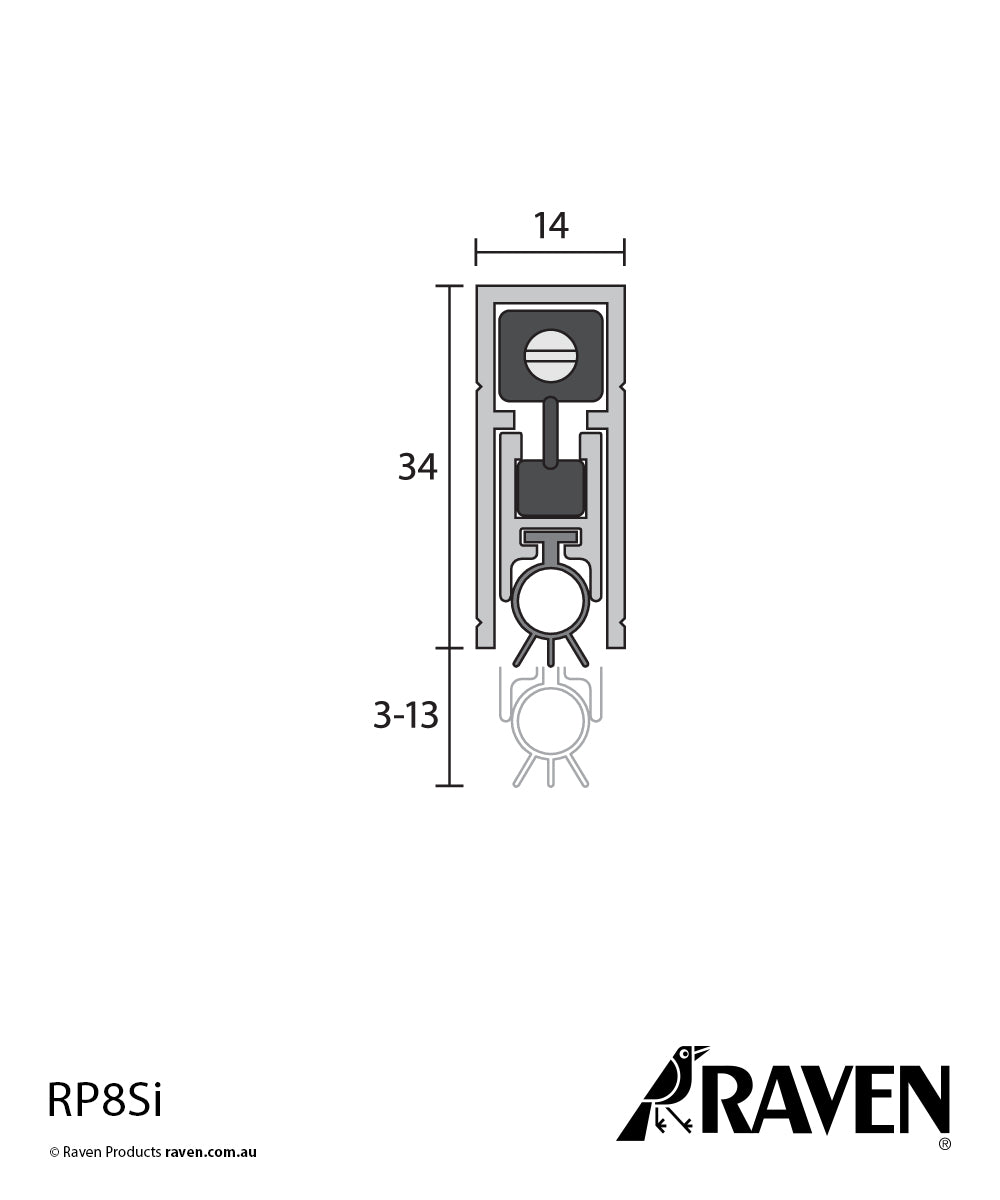

Product Size and length:
WITHOUT ESCUTCHEON PLATES
Nominal Seal Lengths – Cuts Back To
1220mm → 1070mm (min)
1070mm → 920mm (min)
920mm → 820mm (min)
820mm → 600mm (min)
⚠️ How to Choose the Correct Length
The seal length refers to the maximum door width it suits AFTER cutting back, not the door size itself.
Please match your door leaf width, not the opening size.
Example:
-
🚪 810mm wide door → choose 820mm seal
-
❌ Do NOT choose 920mm
Why?
-
920mm seal cuts back to 820mm
-
That means it is designed for doors up to 820mm wide
-
For a standard 810mm door, the correct size is 820mm
If unsure, choose the next size up and trim down to suit.
Approvals & Compliance
R37913
Certifire CF 5710
ANSI/BHMA A156.22
Acoustic Performance
Australia / New Zealand
NCC F7D6
UK / EU
Approved Document E
Rated to BS EN ISO 717-1
Fire Rating
Australia / New Zealand
NCC S12C2
AS 1530.4
AS 1905.1
NZBC C/AS2 4.16.2
UK / EU
Approved Document B
BS 476 Part 20 & 22
(Similar to BS EN 1634-1)
Fire Rating Capability
Up to FRL / FRR -/240/30 & FD240
Gasket Flammability
Flammability Index 1 (Tested to AS 1530.2)
Smoke Performance
NCC S12C4
AS 1530.7
BS EN 1634-3
Meets smoke leakage rates specified in:
AS 6905
EN 13501-2 – “Sa”, “S200”
Energy Compliance
ABCB Housing Provisions Standard 2022 – 13.4.4
NCC J5D5
Durability
Tested to over 1,000,000 operating cycles without failure
Insects / Vermin Protection
AS 4674
Clauses 2.1.5(iv) & 2.1.7
Environmental Certification
Global GreenTagCert™
Product Health Declaration™ (GreenTag PHD™)
PlatinumHEALTH™ HealthRATE™
