RP10Si Door Frame / Perimeter Seals
* Please read the description carefully about the cutback length below and select options from top to bottom.
RP10Si Door Frame / Perimeter Seals
Raven Door Sealing Systems
RAVEN PRODUCTS

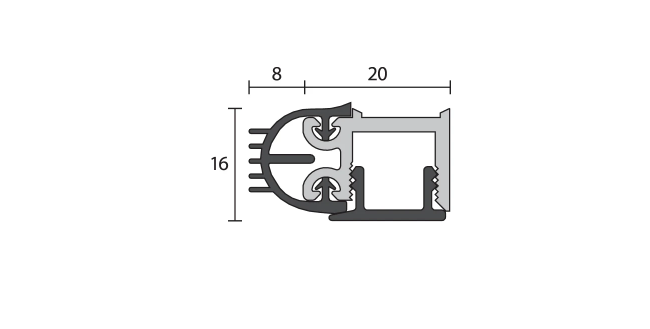

An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency. RP10Si can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit, RP10Si has a tamper resistant, rigid PVC cover strip (SE).
Product Specifications

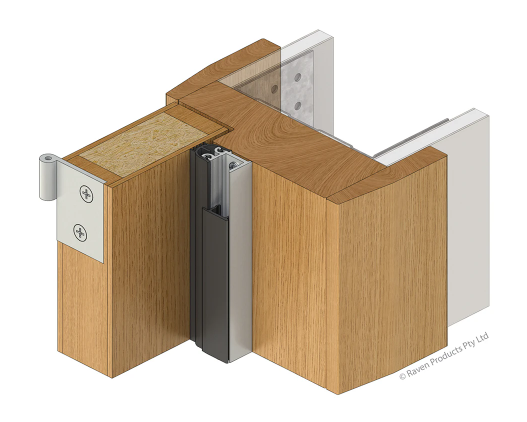

Head and jambs of single and double butt hinged doors.
Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Approvals & Compliance
UL: R37913, Certifire: CF 5710, ANSI/BHMA: A156.22
Acoustic Performance
Australia / New Zealand
NCC F7D6
UK / EU
Approved Document E, Rated to BS EN ISO 717-1
Fire Rating
Australia / New Zealand
NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2
UK / EU
BS 476 Pt. 20 & 22 (similar to BS EN 1634-1), Approved Document B
Fire Rating Capability
Up to FRL / FRR -/240/30 & FD240
Gasket Flammability
Flammability Index 1 (Tested to AS 1530.2)
Smoke Performance
NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7, BS EN 1634-3
Energy Compliance
ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
Environmental Certification
Global GreenTagCert™
Product Health Declaration™ (GreenTag PHD™)
PlatinumHEALTH™ HealthRATE™
RP10Si Fitting Instructions
